Enterprise Hardware

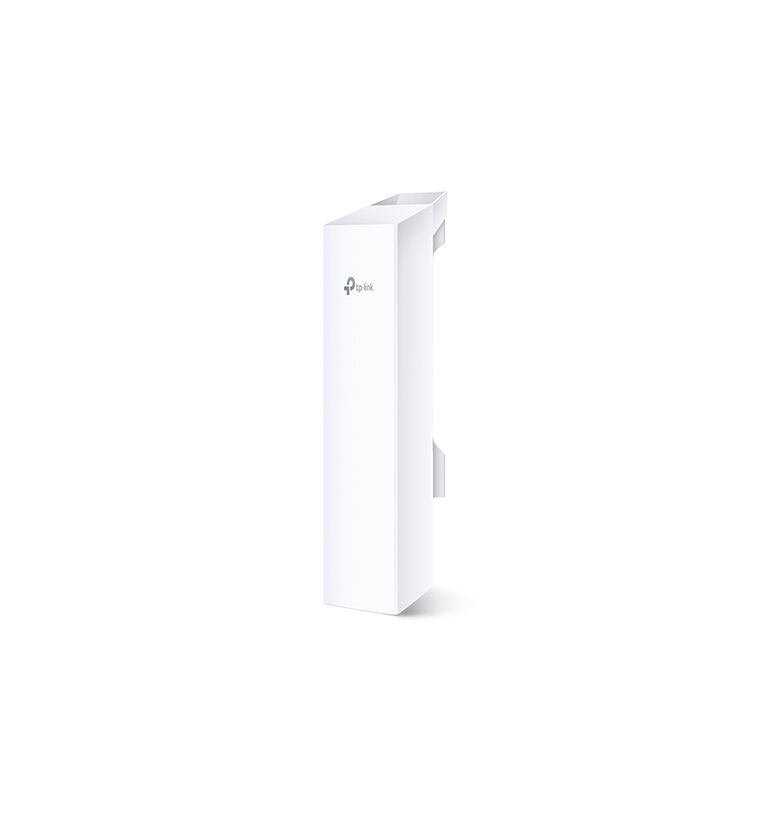

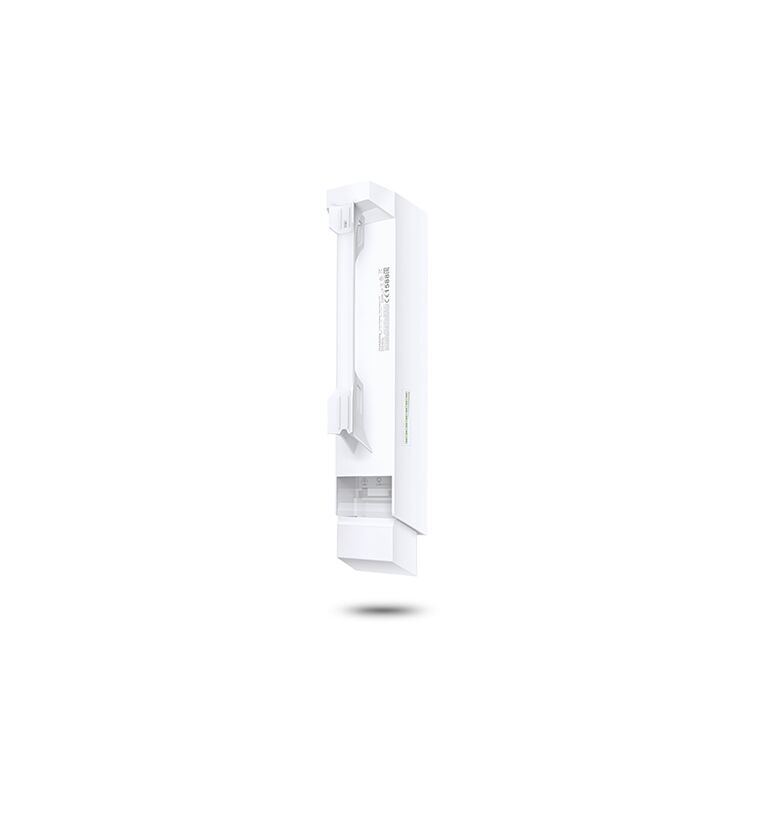

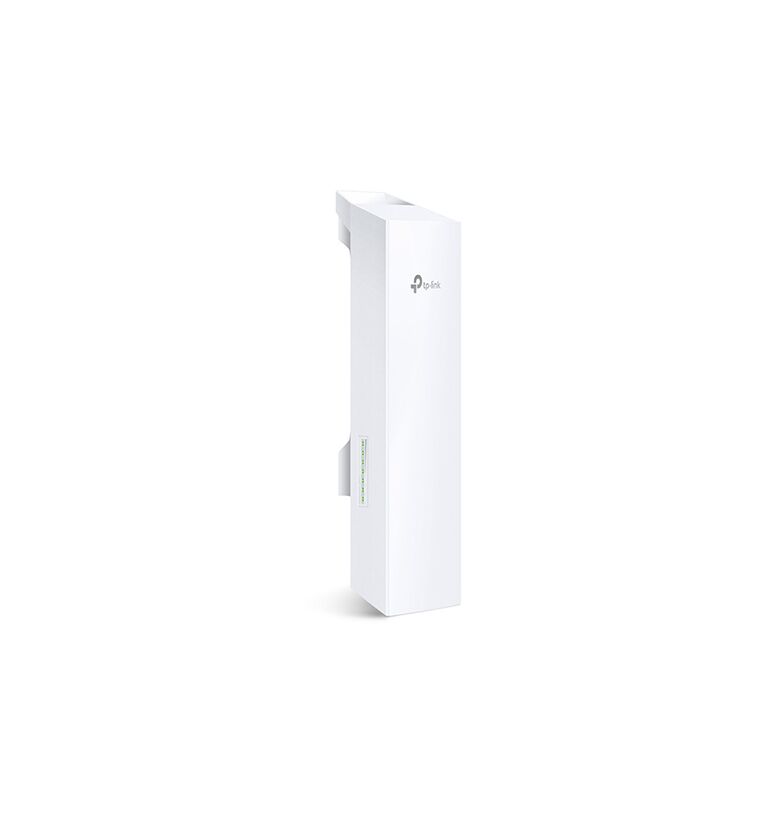

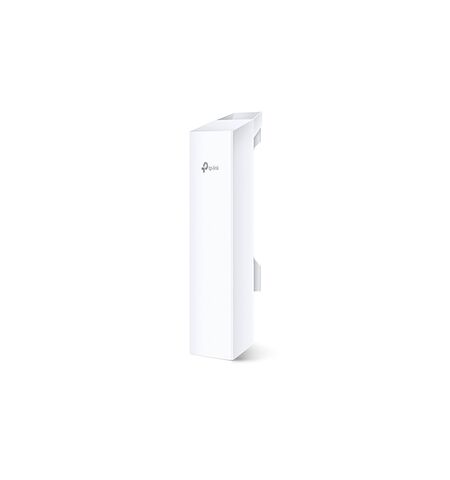

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40°C (-40°F) to +70°C (158°F).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna Dedicated metal reflector ensures higher gain and lower noise interference.
13km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
| HARDWARE FEATURES |
| Processor |
Qualcomm 650MHz CPU, MIPS 24Kc |
| Memory |
64MB DDR2 RAM, 8MB Flash |
| Antenna Gain |
12dBi |
| Beamwidth |
60° (Azimuth)/30° (Elevation) |

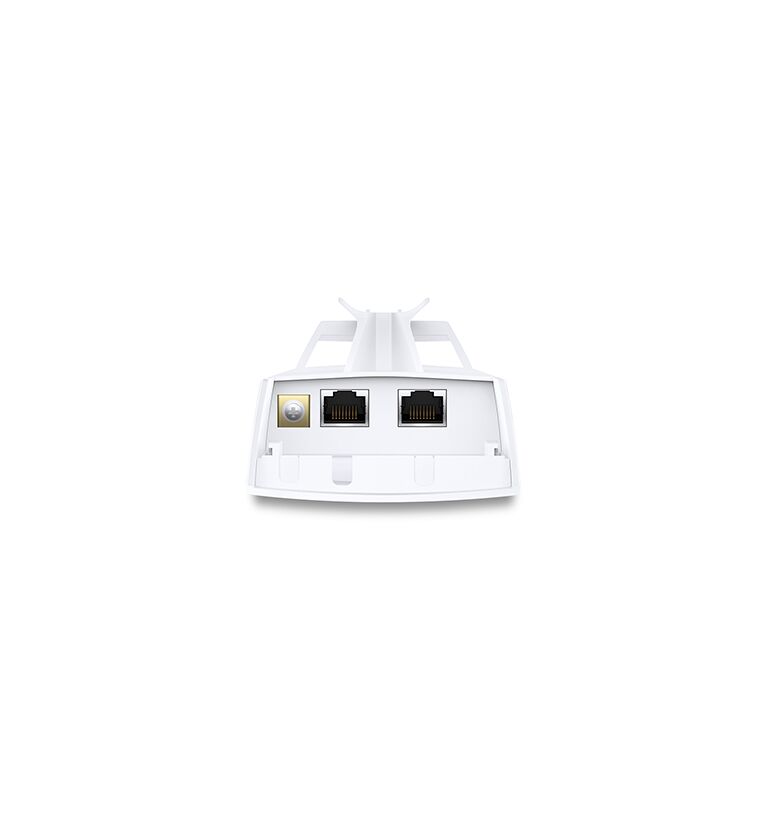

| Interface |
1 10/100Mbps Shielded Ethernet Port (LAN0/POE)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button |
| Power Supply |
24VDC/0.5A Passive PoE (+4,5pins; -7,8pins) |
| Dimensions(WxDxH) |
276 x 79 x 60 mm |
| Protection |
15KV ESD Protection
6KV Lightning Protection |
| Enclosure |
Material: Outdoor ASA stabilized plastic
Weatherproof: IPX5 water and dust proof design |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11b/g/n |
| Proprietary Protocol |
TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds |
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic) |
| Frequency |
2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmission Power |
30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
| OTHERS |
| Certification |
CE, FCC, RoHS, IPX5 |
| Package Contents |
Outdoor CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Strap
AC Power Cord
Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Environment |
Operating Temperature: -40°C~70°C (-40°F~158°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
| POE ADAPTER FEATURES |
| Dimensions(WxDxH) |
85.8 x 43.9 x 29.7mm |
| Efficiency |
>84.29% |
| Input Current |
0.4A Max @ 100VAC |
| Input Voltage |
100VA~240VAC @ 50Hz~60Hz |
| Interfaces |
1 AC Jack with Earth Ground
1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data) |
| Output Voltage |
24VDC(+4,5pins; -7,8pins) |
| Power LED |
Green |
