ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ POE

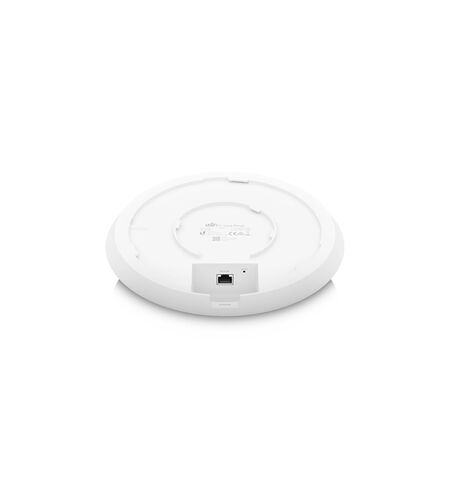

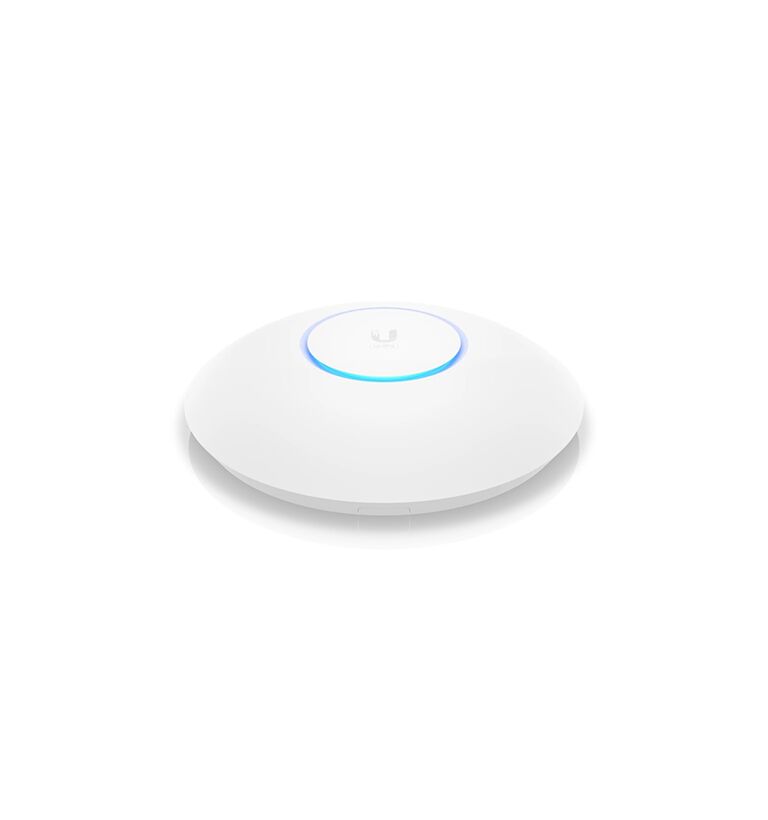

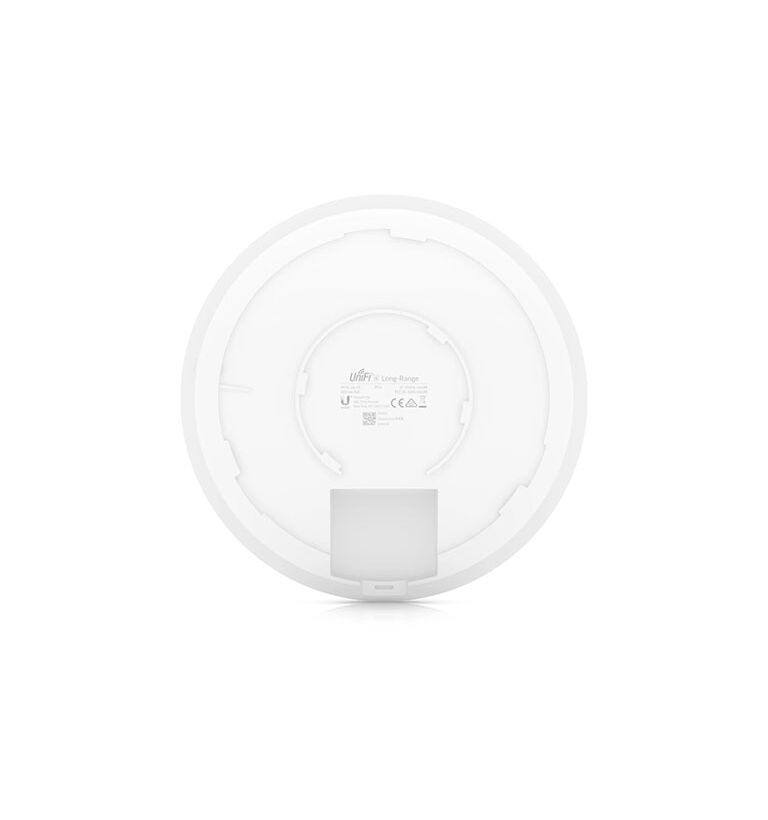

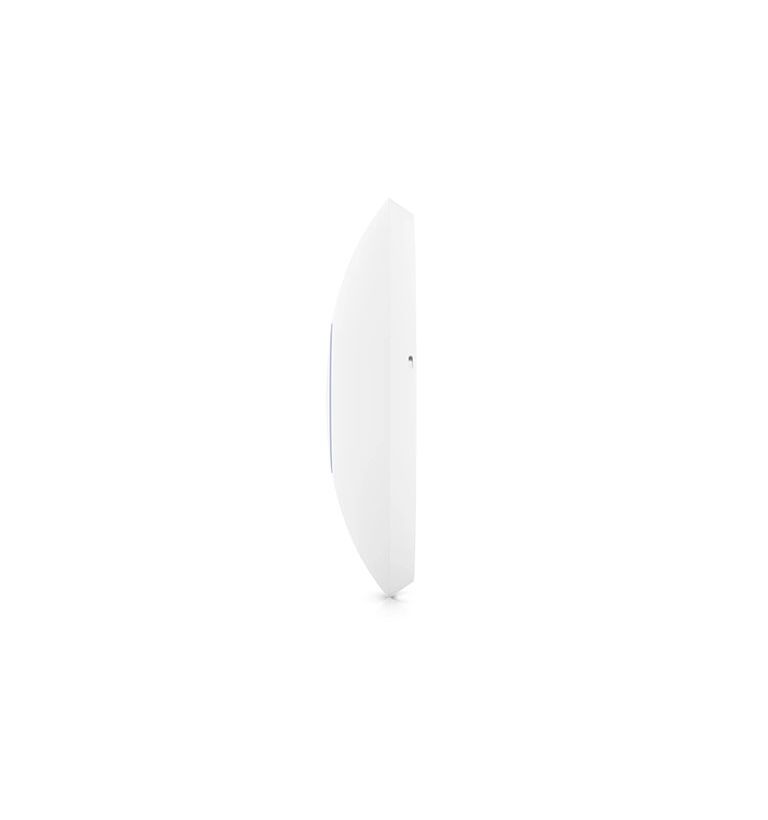

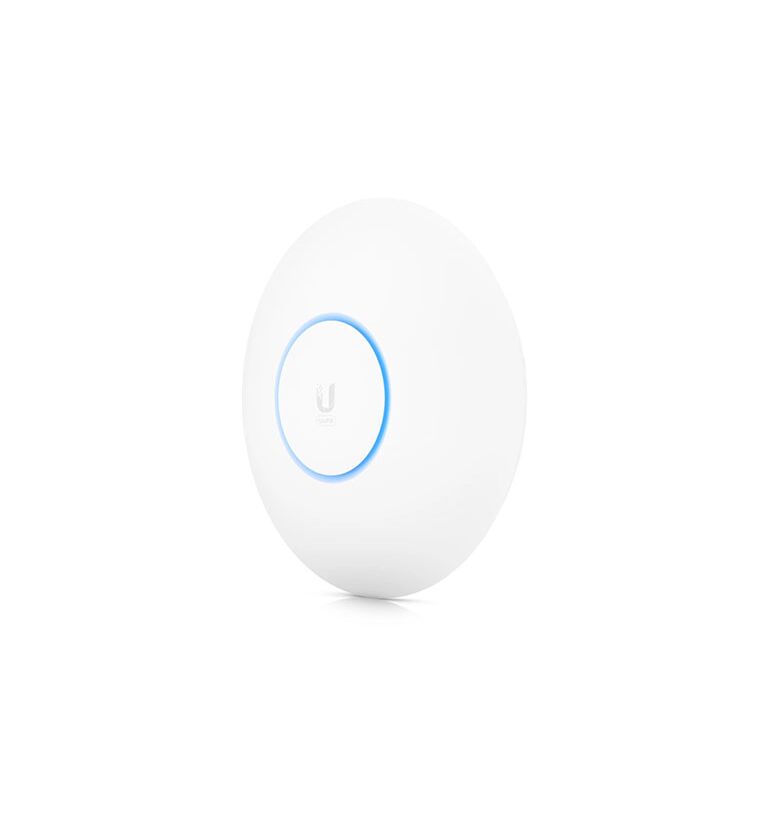

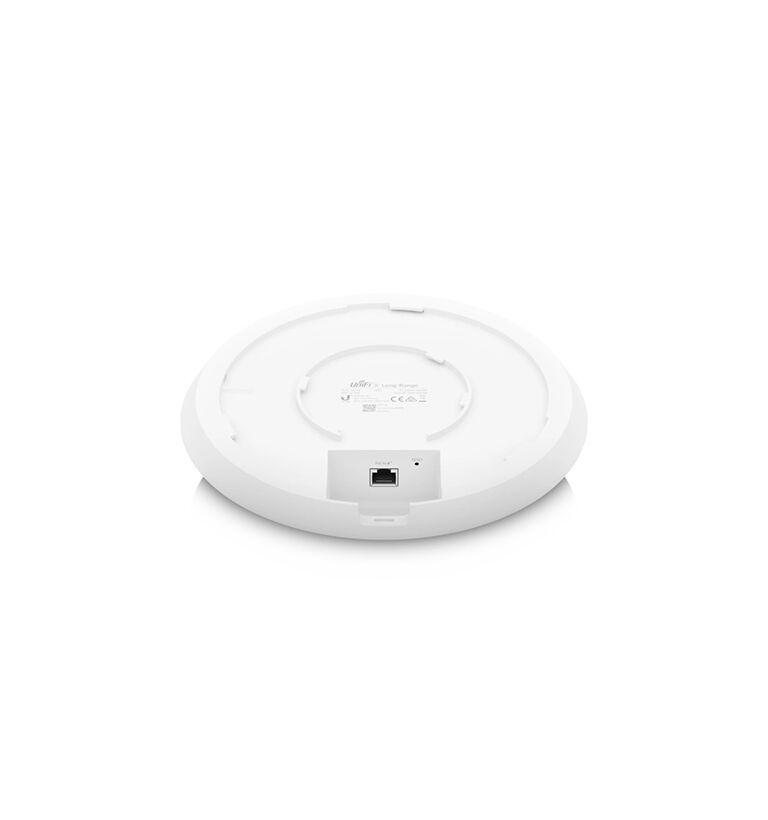

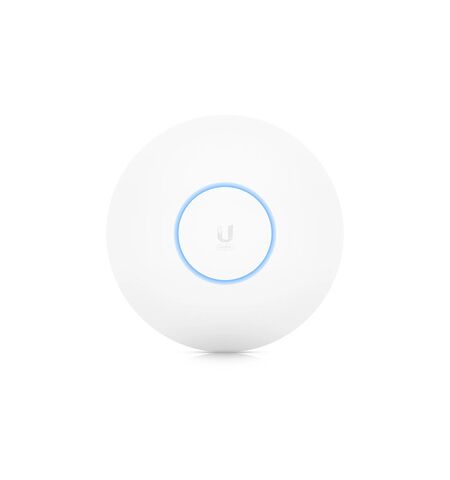

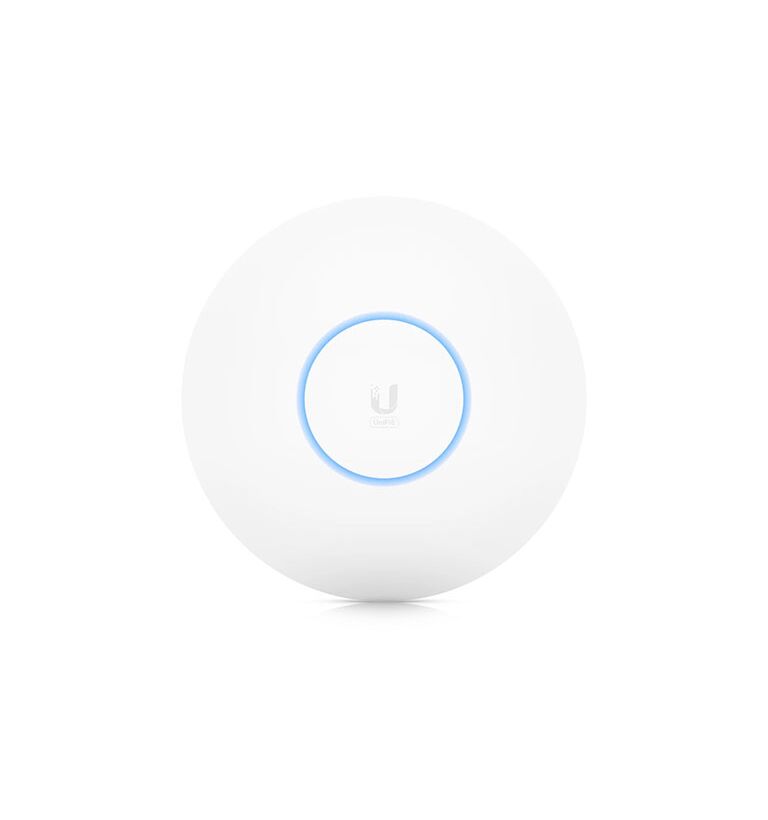

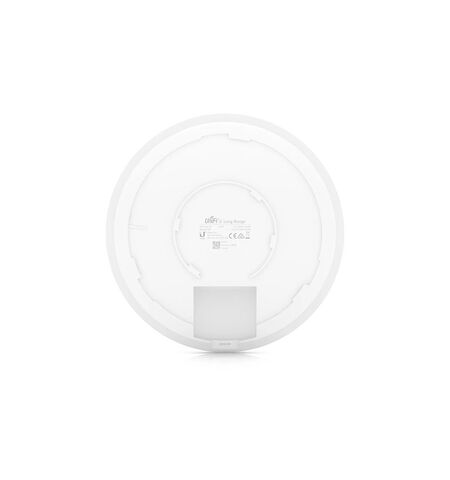

Το U6-LR είναι ένα Access Point υψηλής απόδοσης που αξιοποιεί την προηγμένη τεχνολογία WiFi 6 για να παρέχει ισχυρή ασύρματη κάλυψη.
Το U6-LR συνδυάζεται άψογα σε οποιοδήποτε περιβάλλον και μπορεί να τοποθετηθεί σε εσωτερικούς και ημιυπαίθριους χώρους.
Features:
• 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
• Four-stream high-efficiency Wi-Fi 6 technology
• 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
• 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
• Powered with 802.3at PoE (PoE injector not included)
Managed by UniFi Network Controller version: 6.0.34 or higher.
Works with UniFi Network Controller
• Manage Your Networks from a Single Control Plane
• Intuitive and Robust Configuration, Control and Monitoring
• Remote Firmware Upgrade
• Users and Guests
• Guest Portal/Hotspot Support
Best-in-class Wi-Fi coverage and performance
With its Wi-Fi 6 capability, the U6-LR will strengthen your enterprise environment with the widest, most reliable coverage yet.
Four-stream high-efficiency Wi-Fi 6 technology
Wi-Fi 6 APs deliver an aggregate radio rate of up to 3 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios.
Powerful, wider wireless coverage
The U6-LR access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
Simultaneously connect to more devices
Create and support over 300 distinct client connections.
Easily set up and grow your network
The U6-LR access point seamlessly integrates with the UniFi Network Controller and simplifies network bridging.
Specifications |
Mechanical |
Dimensions |
Ø220 x 48 mm |
Weight |
Without Mount: 800 g With Mount: 930 g |
Enclosure Characteristics |
Plastic |

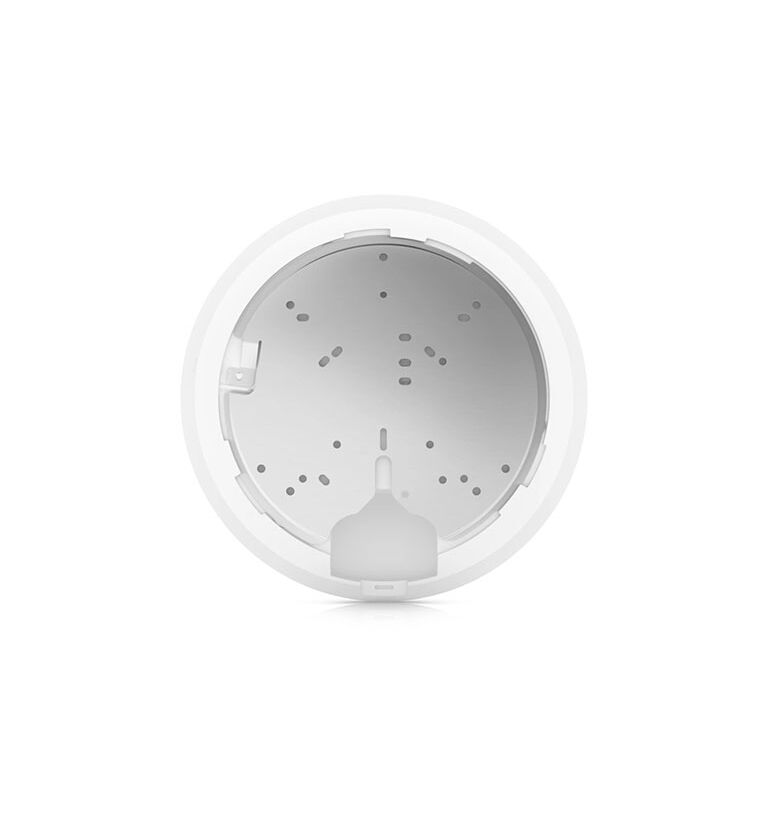

Mounting Characteristics |
SGCC Steel |
Weatherproofing |
IP54 |
Hardware |
Processor Specs |
Dual-Core® Cortex® A53 at 1.35 GHz |
Memory Information |
512 MB |
Management Interface |
Ethernet |
Networking Interface |
(1) 1 Gbps Ethernet RJ45 |
Buttons |
Factory Reset |
LEDs |
RGB |
Power Method |
PoE+, Passive PoE (48V) |
Power Supply |
UniFi PoE Switch 48V, 0.5A PoE Adapter (Not Included) |
Supported Voltage Range |
44 to 57VDC |
Max. Power Consumption |
16.5W |
Max. TX Power 2.4GHz 5GHz |
26 dBm 26 dBm |
MIMO 2.4GHz 5GHz |
4 x 4 4 x 4 |
Throughput Speeds 2.4GHz 5GHz |
600 Mbps 2400 Mbps |
Antenna Gain 2.4GHz 5GHz |
4 dBi 5.5 dBi |
Mounting |
Wall/Ceiling (Kits Included) |
Operating Temperature |
-30 to 60° C (-22 to 140° F) |
Operating Humidity |
5 - 95% Noncondensing |
Certifications |
CE, FCC, IC |
Software |
Wi-Fi Standards |
802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions |
BSSID |
8 per Radio |
VLAN |
802.1Q |
Advanced QoS |
Per-User Rate Limiting |
Guest Traffic Isolation |
Supported |
Concurrent Clients |
300+ |
Supported Data Rates (Mbps) |
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (Wi-Fi 4) |
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
802.11b |
1, 2, 5.5, 11 Mbps |
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11ac (Wi-Fi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
802.11ax (Wi-Fi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
