HARDWARE FEATURES | |

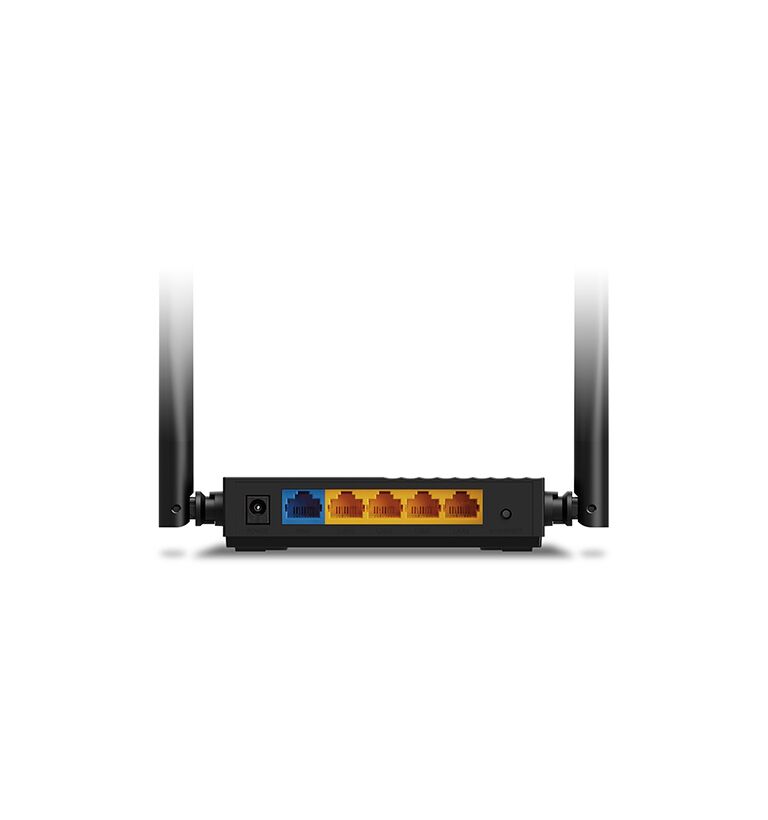

Ethernet Ports | 4 x 10/100Mbps LAN Ports, 1 x 10/100Mbps WAN Port |
Buttons | Reset/WPS Button |
Antennas | 4 Fixed Omni Directional Antennas |
External Power Supply | 9VDC/0.85A |
Dimensions(WxDxH) | 115 x 106.7 x 24.3 mm |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Frequency | 2.4GHz and 5GHz |
Signal Rate | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps |
Reception Sensitivity | 5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm |
Wireless Functions | Enable/Disable Wireless Radio, WMM |
Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
SOFTWARE FEATURES | |
Operation Modes | Wireless Router, Range Extender, Access Point |
WAN Type | Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access) |
DHCP | DHCP Server, DHCP Client List, Address Reservation |
Quality of Service | WMM, Bandwidth Control |
NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, NO-IP |
Firewall Security | SPI Firewall, IP and MAC Address Binding |
Protocols | IPv4, IPv6 |
Management | Parental Controls, Access Control, Local Management, Remote Management |
Guest Network | 2.4GHz Guest Network, 5GHz Guest Network |
OTHERS | |
Certification | FCC, CE, RoHS |
Package Contents | Wireless Router Archer C54 Power Adapter RJ-45 Ethernet Cable Quick Installation Guide |
System Requirements | Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for internet access) |
Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~60°C (-40°F ~140°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
