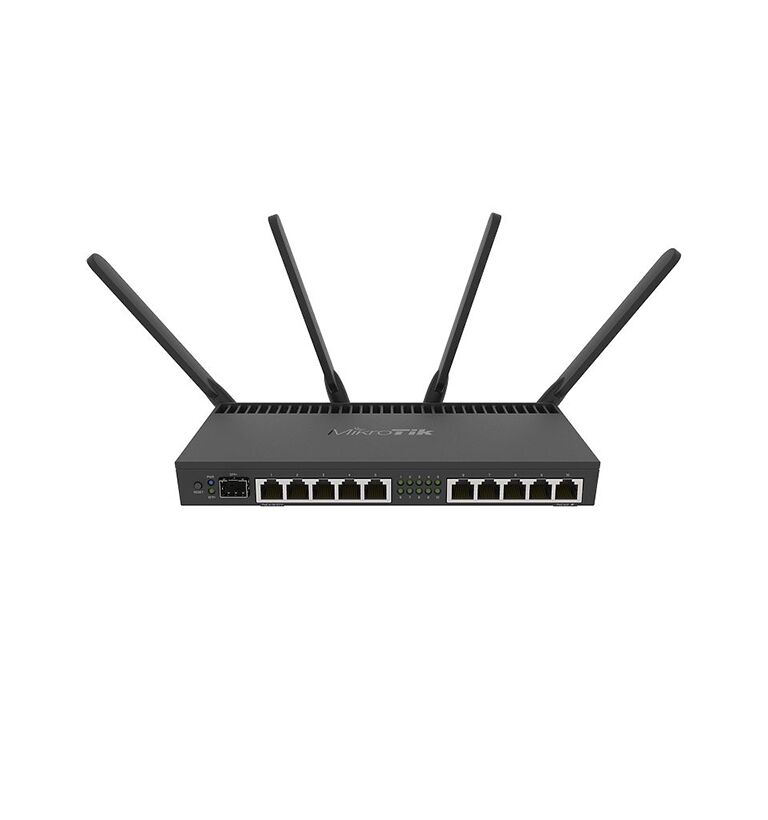

The WiFi model is a dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5 GHz.

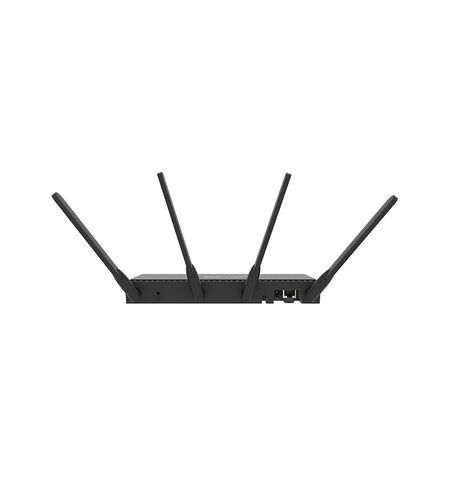

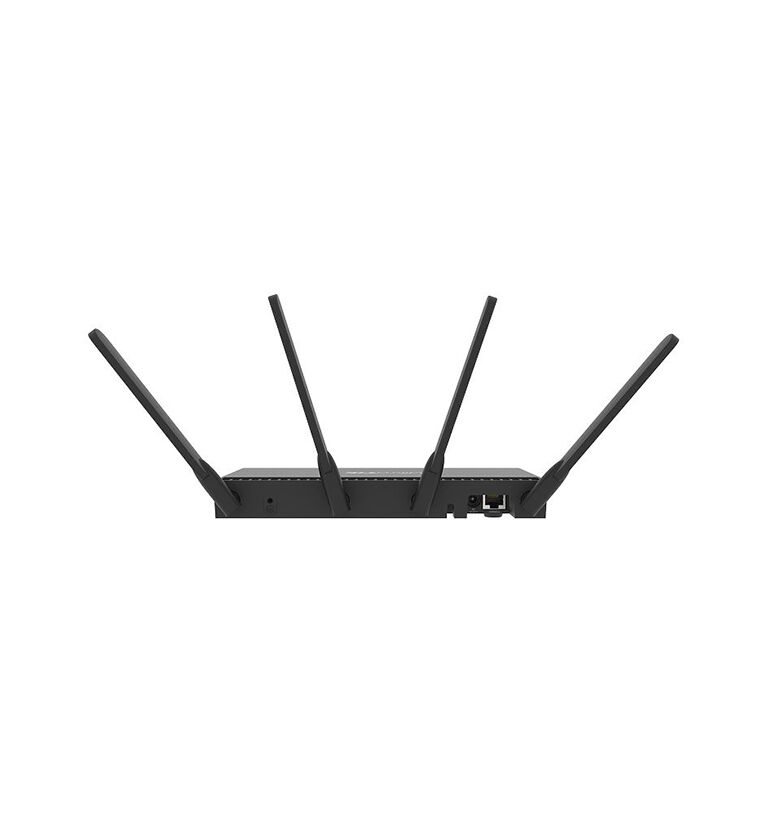

For legacy devices, the unit also has a dual chain 2 GHz interface. The device has large external antennas for amazing 360 degree coverage.
In addition to the ten 1 Gbps ethernet ports, an SFP+ port provides optional 10 Gbps connectivity through an SFP+ module (not included).
Product code |
RB4011iGS+5HacQ2HnD-IN |
Architecture |
ARM 32bit |
CPU |
AL21400 |
CPU core count |
4 |
CPU nominal frequency |
1.4 GHz |
Dimensions |
228 x 120 x 30 mm |
License level |
5 |
Operating System |
RouterOS |
Size of RAM |
1 GB |
Storage size |
512 MB |
MTBF |
Approximately 200'000 hours at 25C |
Tested ambient temperature |
-40°C to 45°C |
IPsec hardware acceleration |
Yes |
Powering |
PoE in |
Passive PoE |
PoE in input Voltage |
18-57 V |
PoE out |
Passive PoE up to 57V |
PoE-out ports |
Ether10 |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
12-57 V |
Max out per port output (input > 30 V) |
420 mA |
Max out per port output (input < 30 V) |
600 mA |
Max total out (A) |
600 mA |
Max power consumption |
44 W |
Max power consumption without attachments |
23 W |
Wireless |
AC speed |
AC2000 |
Wireless 5 GHz Max data rate |
1733 Mbit/s |
Wireless 5 GHz number of chains |
4 |
Wireless 5 GHz standards |
802.11a/n/ac |
Antenna gain dBi for 5 GHz |
3 |
Wireless 5 GHz chip model |
QCA9984 |
Wireless 5 GHz generation |
Wi-Fi 5 |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
3 |
Wireless 2.4 GHz chip model |
R11e-2HnD |
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet |
10/100/1000 Ethernet ports |
10 |
Fiber |
SFP+ ports |
1 |
Peripherals |
Serial port |
RJ45 |
Other |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Certification & Approvals |
Certification |
CE/RED, FCC, IC, EAC, ROHS |
IP |
IP20 |
