Featuring dual WAN ports, compatible with VDSL/ADSL/Fiber/Cable services • Providing broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL • Share files, media and printers with your friends or family using the multi-functional USB port
What This Product Does

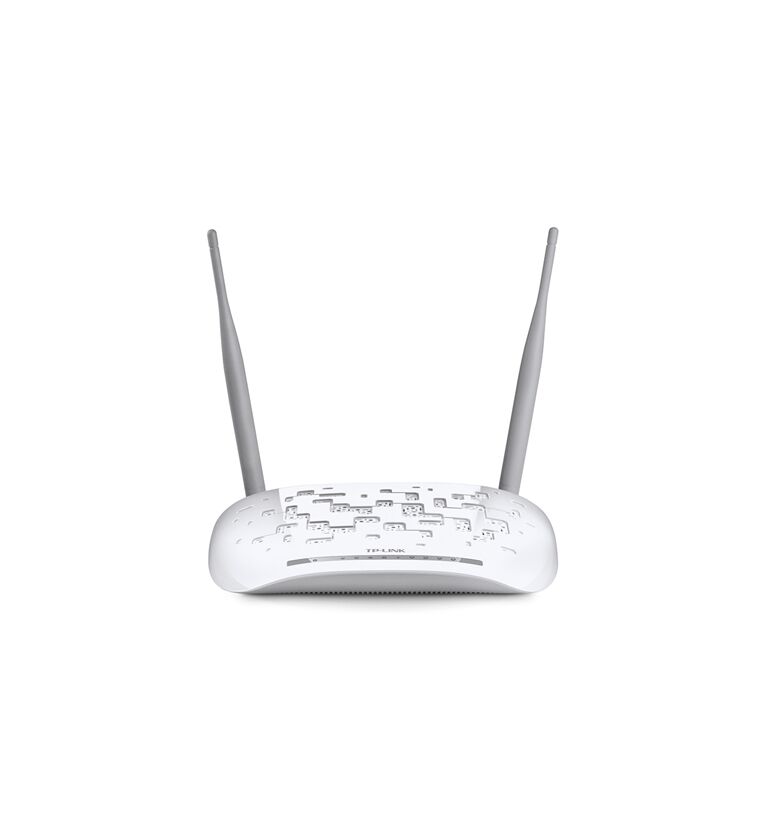

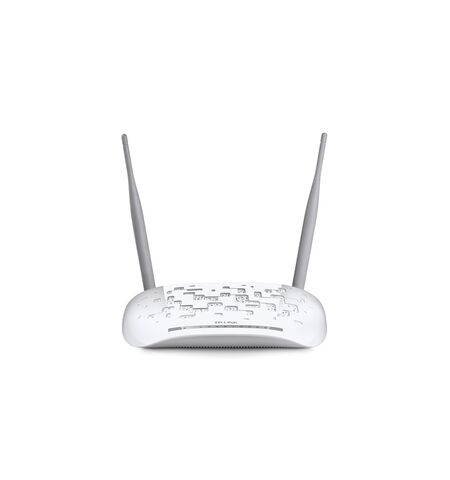

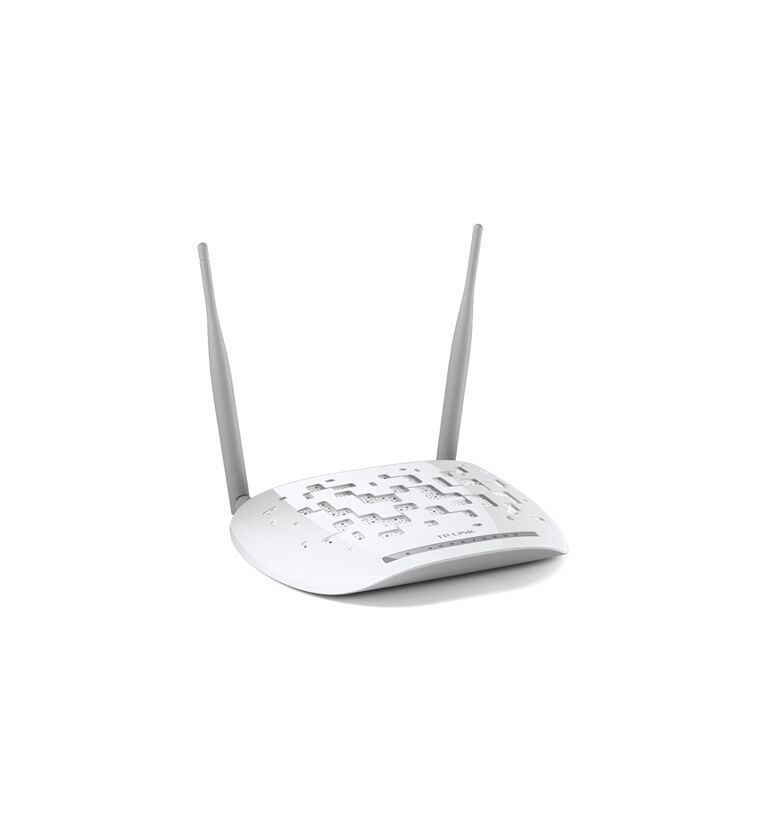

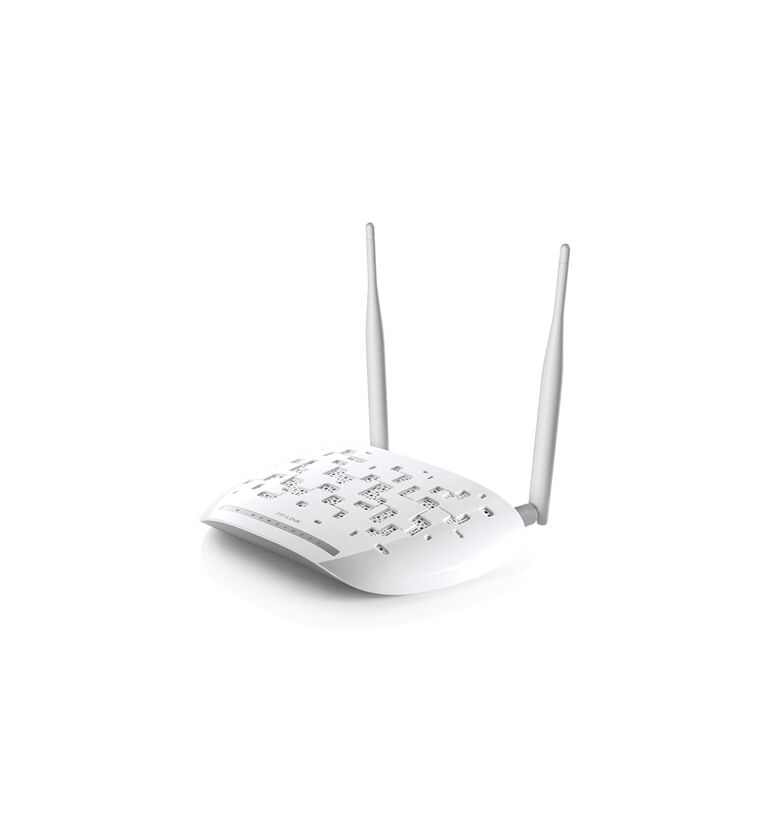

TP-LINK’s TD-W9970B, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and upstream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970B is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.
USB Sharing Port – Easy Sharing
Using the TD-W9970B’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.
Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service
The TD-W9970B supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
Up to 100Mbps broadband speed
The TD-W9970B supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.
Virtually Impregnable-10 VPN IPsec tunnels
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970B users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 44/2002 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 44/2002
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.

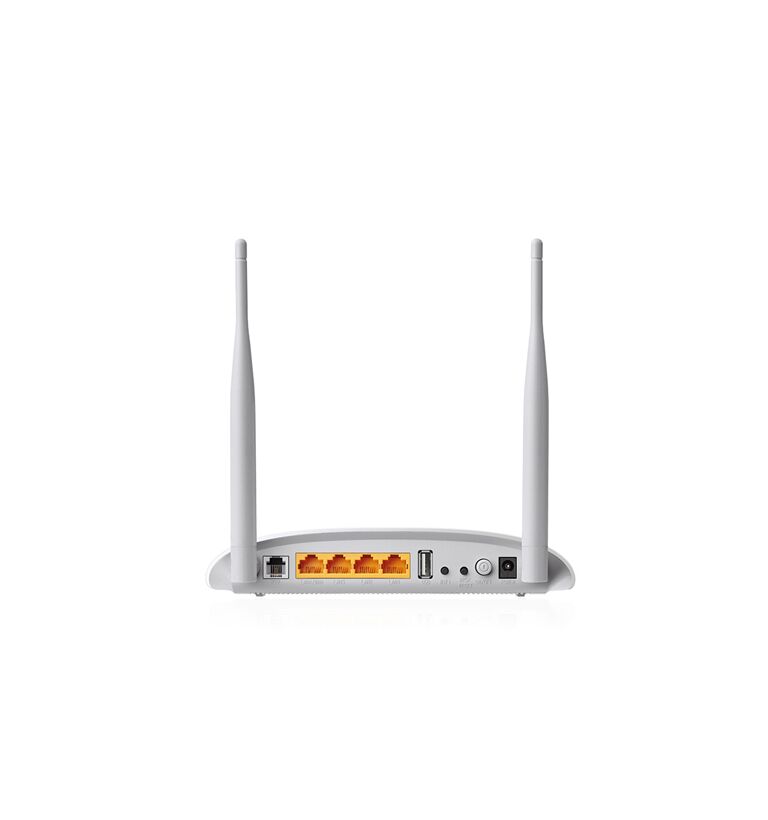

| HARDWARE FEATURES |
| Interface |
4 10/100Mbps RJ45 Ports
1 RJ11 Port
1 USB 2.0 Port |
| Button |
1 Power On/Off Button
1 WPS/RESET Button
1 Wi-Fi On/Off Switch |
| External Power Supply |
12VDC/1A |
| IEEE Standards |
IEEE 802.3, 802.3u |
| VDSL2 Standards |
ITU-T G.993.2
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP) |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1 |
| ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis) |
| ADSL2+ Standards |
ITU-T G.992.5 |
| Dimensions (WxDxH) |
195 x 130 x 36mm |
| Antenna Type |
Omni directional, Fixed |
| Antenna Gain |
2 x 5dBi |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11b, 802.11g, 802.11n |
| Frequency |
2.400-2.4835GHz |
| Transmit Power |
<20dBm(EIRP) |
| Wireless Security |
Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering |
| SOFTWARE FEATURES |
| Quality of Service |
WMM, Bandwidth Control (IP QoS) |
| Security |
NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering |
| IPv6 |
IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
| Management |
Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools |
| Port Forwarding |
Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
| VPN Pass-Through |
PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs |
| Advanced Features |
Ethernet WAN (EWAN)
Guest Network, Wireless Schedule
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP |
| USB Sharing |
Storage Sharing
FTP Server
Media Server
Print Server |
| IGMP |
IGMP snooping V1/V2/V3
IGMP Multicast |
| IPSec VPN |
10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS) |
| OTHERS |
| Certification |
CE, RoHS |
| Package Contents |
TD-W9970
External Splitter
RJ-11 Telephone Line
RJ-45 Ethernet Cable
Quick Installation Guide
Power Adapter |
| System Requirements |
Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
| Environment |
Operating Temperature: 0~40 °C
Storage Temperature: -40~70 °C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
