The RB2011Ui is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful 1000mW dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, microUSB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel- all this for only $129!
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

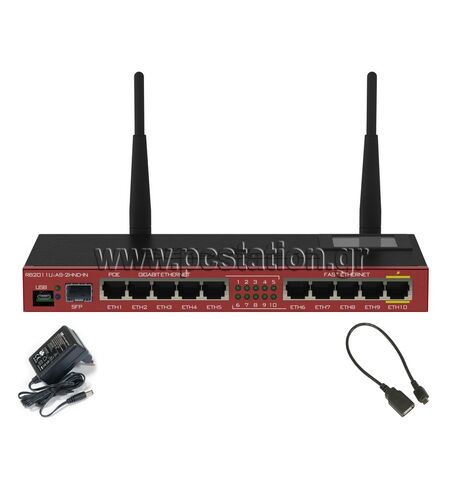

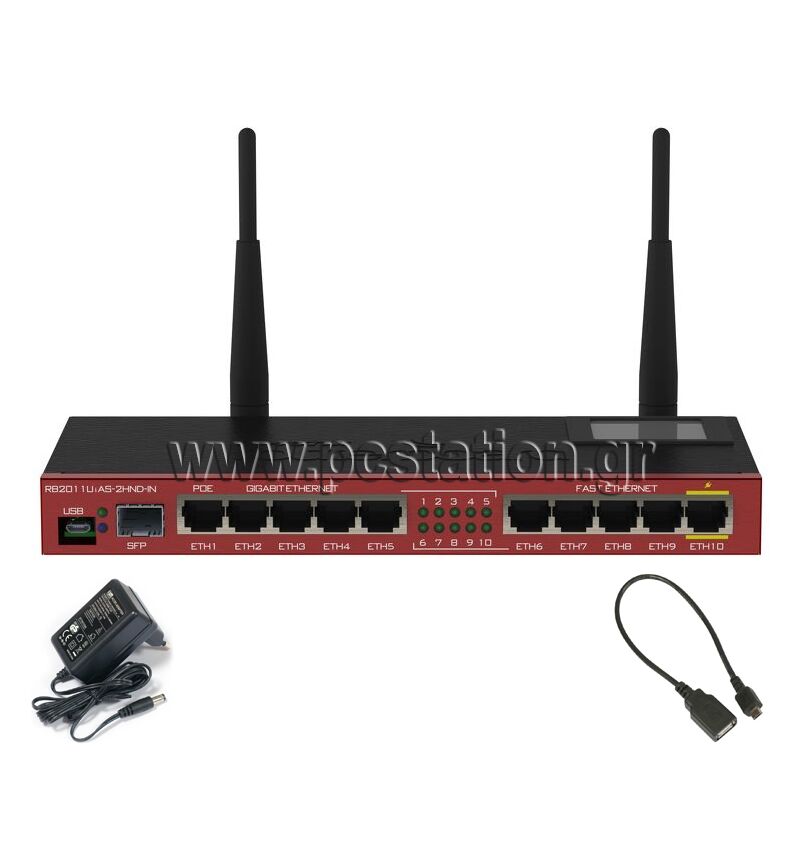

RouterBOARD 2011UAS-2HnD-IN comes with desktop enclosure, LCD panel and power supply.
Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.
The RB2011Ui also has passive PoE output capability on the last port (ETH10), this means you can power another device just by connecting it over regular Ethernet cable
|CPU nominal frequency||600 MHz|
|CPU core count||1|
|Size of RAM||128 MB|
|10/100 Ethernet ports||5|
|10/100/1000 Ethernet ports||5|
|Wireless chip model||AR9344|
|Number of USB ports||1|
|Supported input voltage||8 V - 30 V|
|PCB temperature monitor||Yes|
|Dimensions||214mm x 86mm for PCB|
|Tested ambient temperature||-35C to +65C|
|Antenna gain DBI||4|
|Max Power consumption||11W|
|USB Power Reset||Yes|
|USB slot type||microUSB type AB|
|Number of chains||2|
|Storage size||128 MB|
|Transmit power (dBm)||Receive Sensitivity||Transmit power (mW)|
Τα αποτελέσματα των δοκιμών απόδοσης
|RB2011UiAS-2HnD-IN||AR9344 1G&100M all port test|
|Mode||Configuration||1518 byte||512 byte||64 byte|
|Bridging||none (fast path)||122.0||1,481.6||232.0||950.3||269.6||138.0|
|Bridging||25 bridge filter rules||83.6||1,015.2||86.0||352.3||87.6||44.9|
|Routing||none (fast path)||122.0||1,481.6||210.0||860.2||226.9||116.2|
|Routing||25 simple queues||100.5||1,220.5||103.9||425.6||106.6||54.6|
|Routing||25 ip filter rules||56.8||689.8||59.6||244.1||60.5||31.0|
1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration
was maxed out
4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration,
different configurations most likely will result in lower results
