Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the
NanoStation® M.

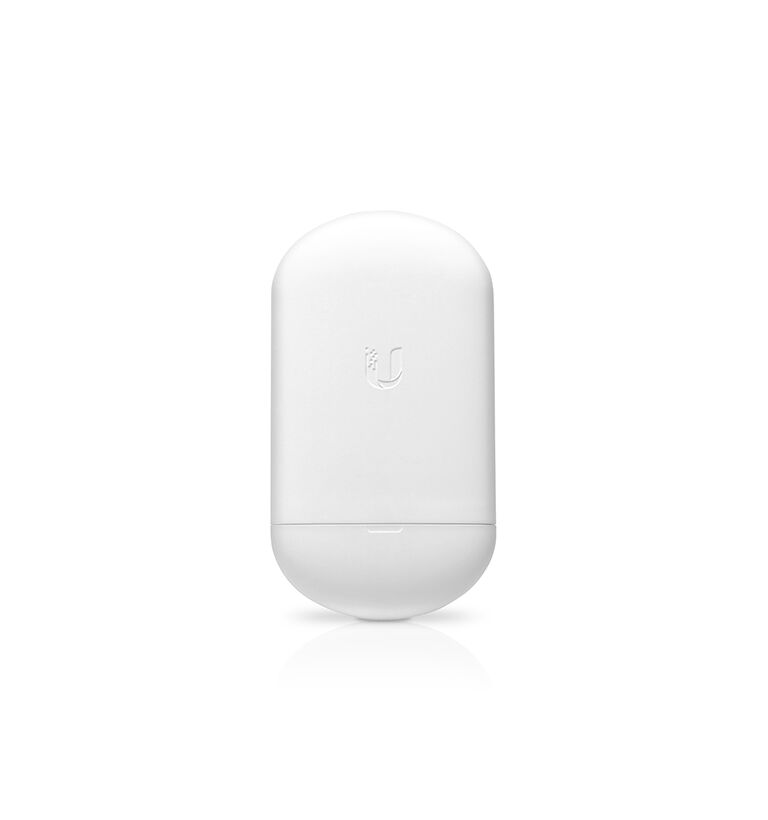

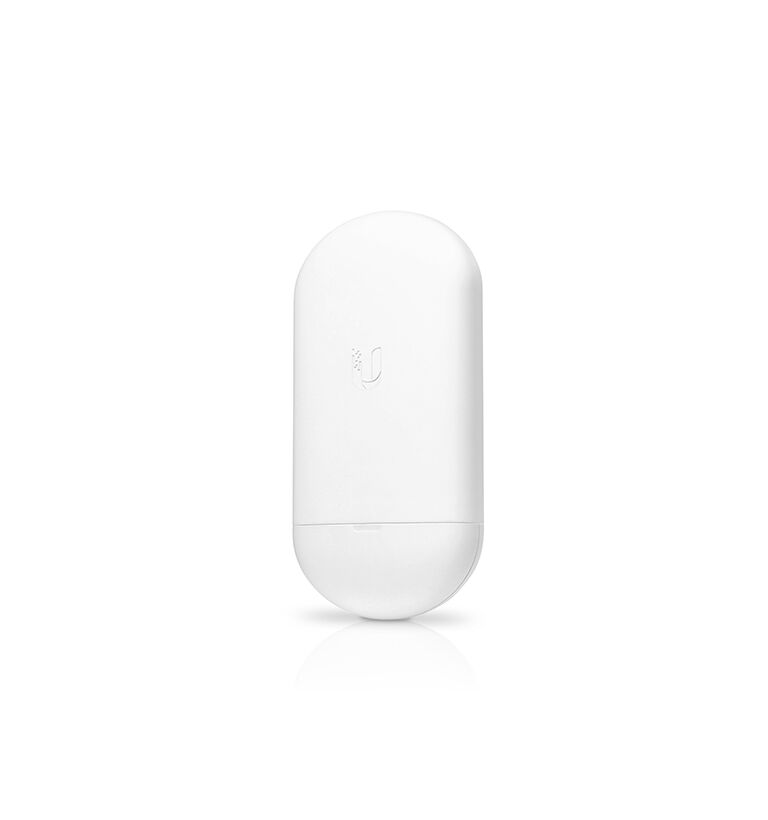

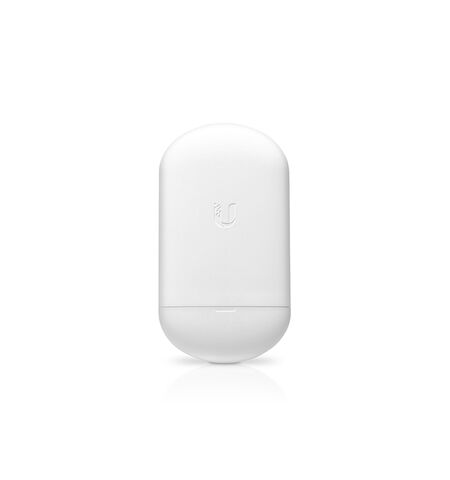

The NanoStation AC loco takes the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol)
technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC loco gets maximum gain out of the
smallest footprint.
The low cost, high performance, and small form factor of the NanoStation AC make it extremely versatile and economical to deploy.
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless
ISP industry.

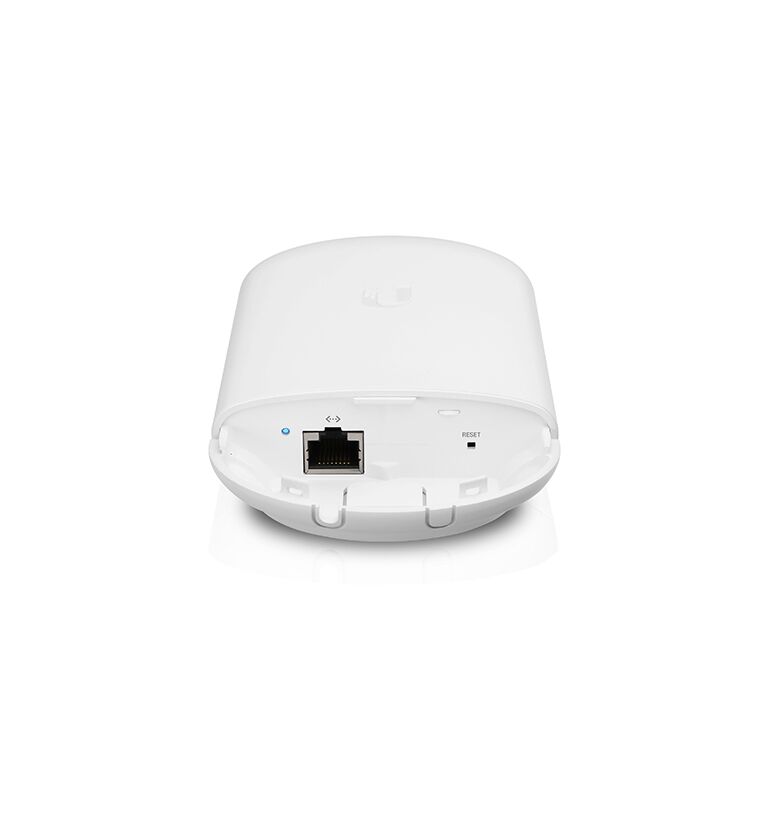

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external
device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Dimensions |
179 x 77.5 x 59.1 mm |
Weight |
180 g |
Power Supply |
24V, 0.3A Gigabit PoE Supply* *Not included. Recommended PoE Adapter: POE-24-12W-G. |
Max. Power Consumption |
7W |
Power Method |
Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) |
Operating Frequency |
5150 - 5875 |
Gain |
13 dBi |
Networking Interface |
10/100/1000 Mbps Ethernet Port |
Channel Bandwidths |
10/20/30/40/50/60/80 MHz |
Processor Specs |
Atheros MIPS 74Kc, 560 MHz |
Memory |
64 MB DDR2 |
Cross-pol Isolation |
20 dB Minimum |
Max. VSWR |
1.8:1 |
Beamwidth |
45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
Polarization |
Dual Linear |
Enclosure |
Outdoor UV Stabilized Plastic |
LEDs |
(1) Power |

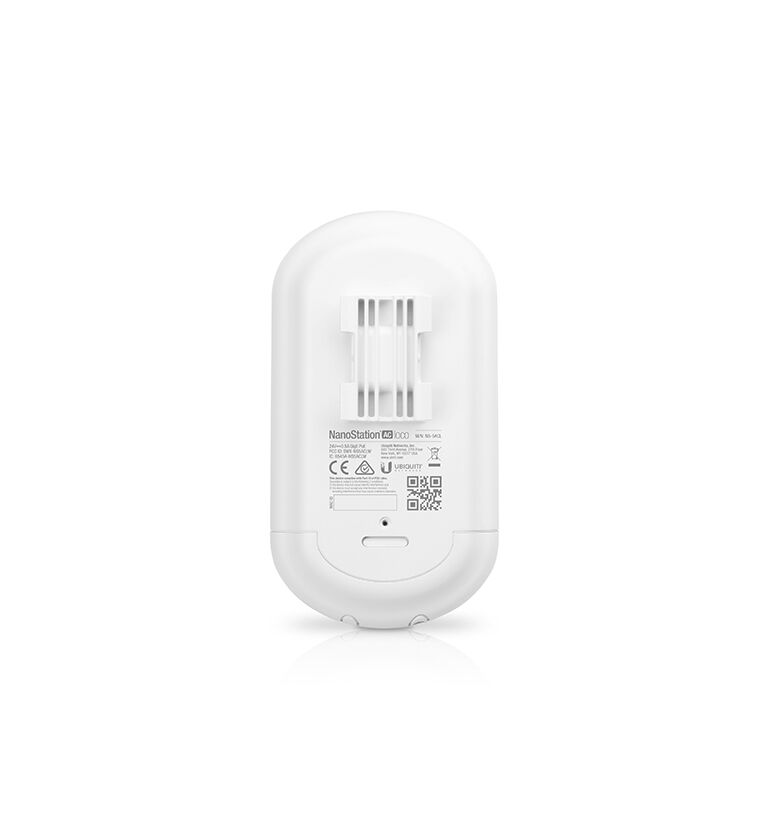

Mounting |
Pole-Mount (Kit Included) |
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
Operating Humidity |
5 to 95% Noncondensing |
RoHS Compliance |
Yes |
ESD/EMP Protection |
±24kV Contact/Air |
Shock & Vibration |
ETSI300-019-1.4 |
Certifications |
CE, FCC, IC |
